Product Details

Basic Info.

Model NO.:pss-9

Type:Hot Sale Roof Top V Bolts with Zinc Plated

Connection:Common Bolt

Head Style:Hexagonal

Standard:SGS, Australia Certificates, etc

Grade:Customized

Application:Home, Industrial, Commercial

Finish:Plain, Black, Phosphate, Zinc , HDG,Customized

Raw Material:Anodized Aluminum6005-T5 & SUS 304

Max Wind Speed:55m/S

Warranty:10 Years and 25 Years Service Life

Export Markets:Global

Process Control:Internal

Inspection:Internal or 3rd Parties

Inspection Reports:Chemical Composition, Physical Property and Sizes

Sample Policy:Sample Free, Freight Collect

Production Update:Weekly Reports Will Be Provided

Additional Info.

Trademark:ALEX

Packing:Double-Layer Woven Bag, Fumigation-Free Pallets

Standard:UIC, DIN, BS, GB, JIS, etc

Origin:Suzhou, Jiangsu

HS Code:7318150000

Production Capacity:600, 000PCS/Month

Product Description

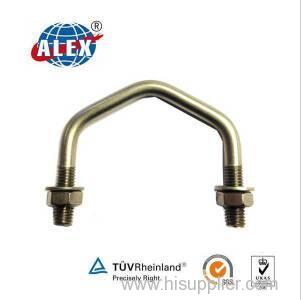

V-Bolt M8 *24 mm Thread, 62 mm Inside Diam, 54 mm Inside Height T316 Stainless Steel

Includes 1 hex nuts on each leg and 1 washer

Thread diameter = M8
Thread Length =24 mm
Internal height =54 mm
Internal diameter of U-bolt = 62 mm
leg Centers: 70 mm
Outside height at top of V: 62 mm
Inside angle 125 degrees

Material Finish

T316 Stainless Steel is suitable for anywhere you would use T304 BUT has the added advantage of being suitable for marine solutions. The molybdenum increases the corrosion resistance to withstand attack from many industrial chemicals and solvents and of course chlorides

Tolerance on dimensions +/- 1 mm. Please note that as we use roll threading, the bar diameter is slightly less than the thread diameter
